TP ISP Pinout Tool 1.5

January 16, 2026

inzman

Testpoint – eMMC/UFS ISP Pinout Tool

TP ISP Pinout Tool 1.5.1 Changelog:

added /
Alcatel TP (06 models: PCB pictures)
Coolpad TP (02), Infinix TP (16), Oppo TP/ISP (14), Realme TP/ISP (26),
Samsung TP/ISP (22), Vivo TP/ISP (46)
search option: case insensitive (ignore the distinction between upper and lower case letters )
Show model/chipset in Mediatek tab (Fixed)
Useless files removed from data folder

TP ISP Pinout Tool 1.5.0 Changelog

More than 1000 PCB pictures (TP/ISP Pinouts)
Added eMMC/UFS ISP Pinouts
Direct Switch TP / ISP Pinouts
Added search by Model (Hidden by default)

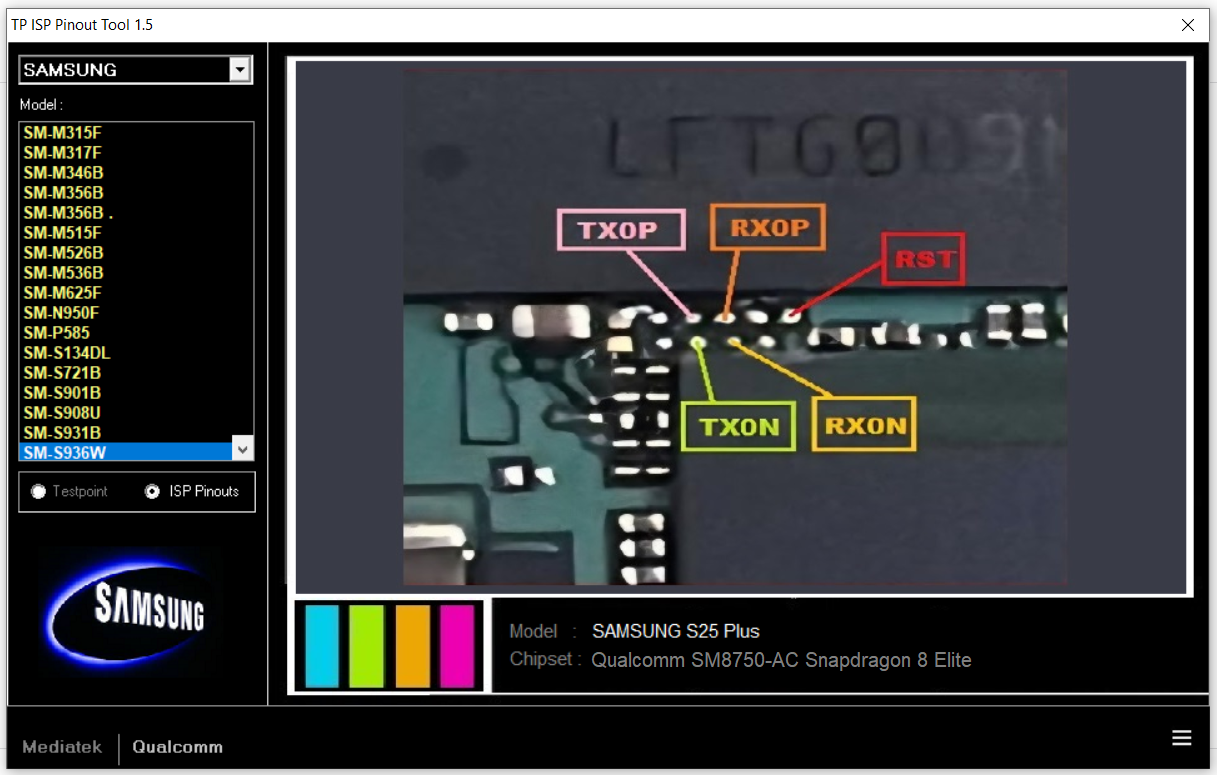

NB: Right-Click on any PCB Picture (to display popup menu) for quick Option :
GUI Capture (bmp).
Enable/disable magnifier.
Show Model/Chipset (added the missing chipset names).
Search by model (case sensitive).
Unchek to disable and hide scrolling text.
Windows size : Choose desired GUI size.

Alternative device names (model alias) may or not have sameTP location ! Click on the exclamation icon to display aliases.
Form size 1, 2 & 3 .. (Enable magnifier if needed)
Some PCB pictures are animated for gold point(s) . To disactivate right click on the PCB Pic, uncheck “Blink EDL Points”

MEDIATEK TAB	QUALCOMM TAB: (QLM+OTHERS)
ALCATEL	ASUS
CONDOR	COOLPAD
DOOGEE	HTC
HUAWEI	HUAWEI
IRIS SAT	INFINIX , ITEL
LENOVO	LG
LOGICOM	NOKIA
OPPO	OPPO
QMOBILE	REALME
REALME	SAMSUNG
SAMSUNG CLONE	SMARTISAN
TECNO	SONY
WIKO	VIVO
ZTE	XIAOMI
